A History of Tufted Rugs

Chapter 61937–1991

Nylon and the broadloom boom

Nylon carpet in DuPont’s records was woven at first, some of it for the company’s own hotel; in 1958 the company made a nylon for carpet, as tufted carpet took off, and spent the next decade selling it.

Nylon carpeting [Nye-Wait "Splendante" and "Cirque" carpet]
Nylon carpet by the Nye-Wait Company, woven to order in two pile heights: “Splendante” in a Celtic design, with a plain “Cirque” border. DuPont photograph, about 1955. Source Permission pending

Key dates

  1. 1937Carothers’s nylon patent granted
  2. 1948DuPont announces Nye-Wait’s all-nylon “Splendante”
  3. 1958“501” and BCF: nylon made for carpet
  4. 1959Carpet Nylon on network television
  5. 1967“Meet Antron”
  6. 1969A conductive fibre against static
  7. 1977Antron laid on a Marathon bridge
  8. 1991“The Making of Carpet Fiber”

On 13 July 1948 DuPont put out a press release about its own hotel in Wilmington, Delaware. Nine months earlier, it said, “a cut pile rug of burgundy spun nylon in Axminster weave” had been laid in the Brandywine Room, one of the Hotel du Pont’s restaurants, and a Wilton carpet in a grey and white spiral pattern was planned for the Grill Room.11“Hotel du Pont Installs Nylon Fabrics for Economy of Wear and Care”, 1948-07-13, Hagley, 1984259_010913_168. Record Both were woven. This chapter follows DuPont’s fibre from carpets like these to the tufting machine, and the selling that made a market for the result.

Carothers’s patents, 1937 and 1938

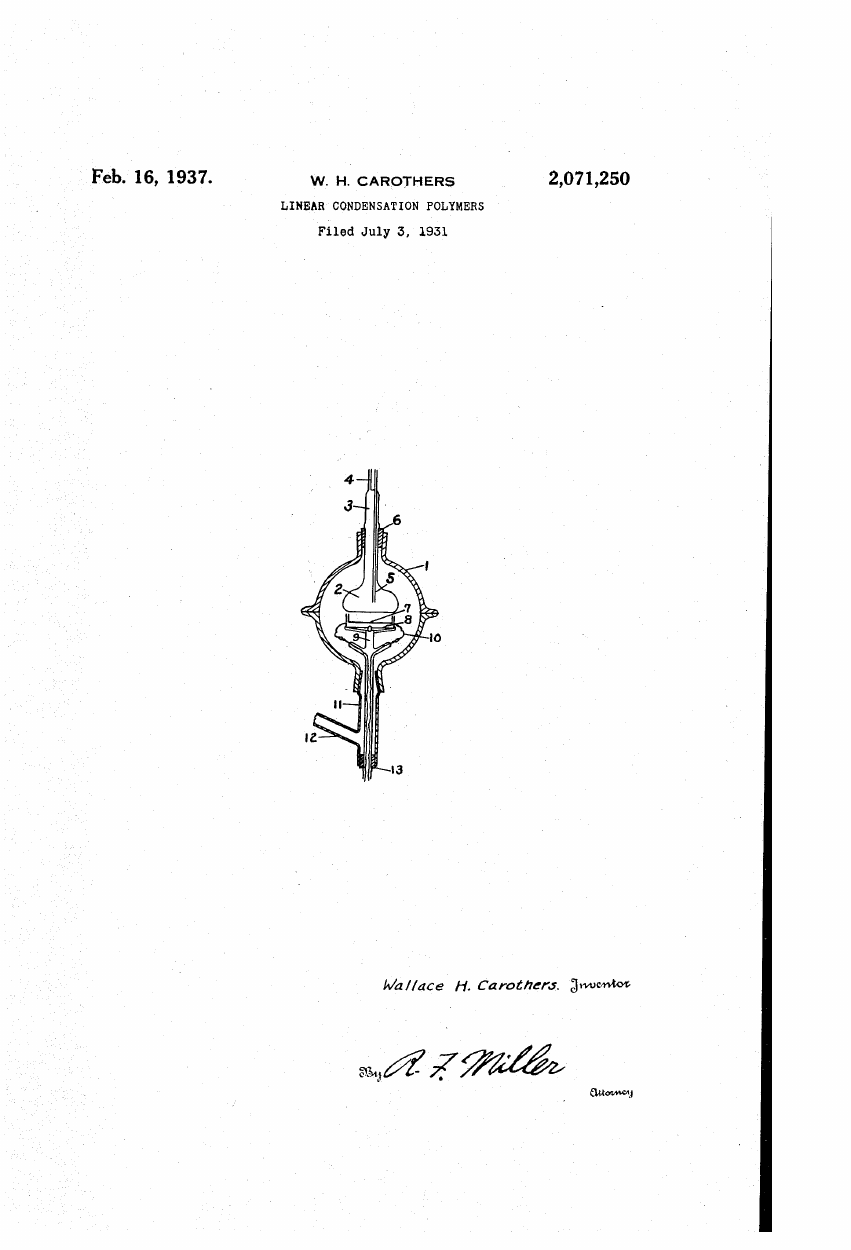

Wallace H. Carothers, "Linear condensation polymers" (US2071250A)
Wallace H. Carothers, “Linear condensation polymers,” US patent 2,071,250, granted 16 February 1937. USPTO via Google Patents (public domain), US2071250ASource

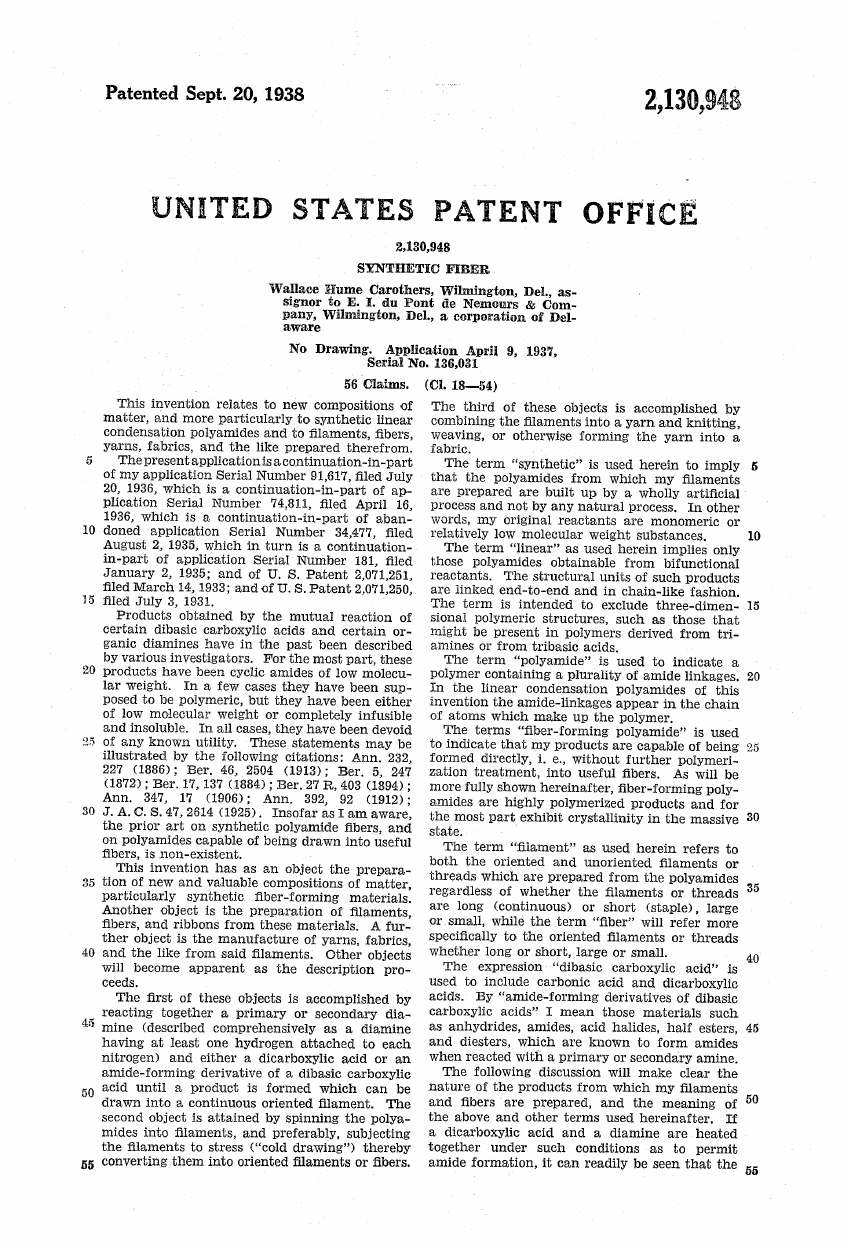

The fibre began as patents. From Wallace Carothers’s research DuPont took out “Linear condensation polymers”, granted on 16 February 1937, and “Synthetic fiber”, granted in 1938.22Wallace H. Carothers, “Linear condensation polymers” (US2071250A), granted 16 Feb 1937. Record Wallace H. Carothers, “Synthetic fiber” (US2130948A), granted 20 Sep 1938. Record Hagley Museum and Library marks the first date as the day the company was granted its nylon patent, and the standard account of how DuPont turned the polymer into a product is Hounshell and Smith’s Science and Corporate Strategy.33“Hagley Vault: ‘February 16, 1937: E. I. du Pont de Nemours & Co. was granted U.S. patent…’”, 1937, Hagley Museum and Library. Record David A. Hounshell, Science and Corporate Strategy: Du Pont R&D, 1902–1980, 1988. Record

The polymer in the 1937 patent is the one later sold as nylon 6,6, and the name needs that care.44Wallace H. Carothers, “Linear condensation polymers” (US2071250A), granted 16 Feb 1937. Record According to the research notes, which have still to cite a primary source for it, a second nylon, nylon 6, was developed separately by Paul Schlack at IG Farben in Germany in 1938, and Allied Chemical’s Caprolan, a nylon 6, later competed with DuPont’s fibre in tufted carpet.55“Nylon 6 was developed separately by Paul Schlack at IG Farben, Germany (1938), sold as Perlon”, research note. Record On that account, “DuPont invented nylon” is true only of nylon 6,6.66“Careful wording: ‘DuPont invented nylon’”, research note. Record

DuPont’s first nylon plant, at Seaford, Delaware, dates from 1939, but carpet came much later: Hagley’s guide to the Seaford collection says nylon for the carpet industry was developed there in 1958.77“Seaford Plant nylon collection (photographs, pamphlets, film)”, 1939–, Hagley. Record The earliest nylon carpets found in DuPont’s papers at Hagley are older, and they came from the loom.

The Nylon Suite at the Hotel du Pont

The Nylon Suite at the Hotel DuPont
The Nylon Suite at the Hotel DuPont, Wilmington. On the floor, James Lees and Sons’ “Sculptex” carpet with an all-nylon face. Hagley dates the photograph about 1945; DuPont’s 1948 press release suggests a later date. Hagley Museum and Library, 1972341_1401 (related views 1972341_1366, _1369, _1371, _1373)SourcePermission pending

DuPont photographed the hotel’s “Nylon Suite”, in which the bedroom draperies, the chair’s upholstery, the window curtain and the carpet were all nylon. On the floor was James Lees and Sons’ “Sculptex” carpet, “an all nylon face in grey-green” which, the caption adds, “does not attract moths or other insects”.88“The Nylon Suite at the Hotel DuPont”, 1945 (year approximate), Hagley, 1972341_1401 (related views 1972341_1366, _1369, _1371, _1373). Record Hagley dates the photographs about 1945, but DuPont’s press release of July 1948 describes nylon furnishings being installed in the hotel then, so they may be later.99“The Nylon Suite at the Hotel DuPont”, 1945 (year approximate), Hagley, 1972341_1401 (related views 1972341_1366, _1369, _1371, _1373). Record “Hotel du Pont Installs Nylon Fabrics for Economy of Wear and Care”, 1948-07-13, Hagley, 1984259_010913_168. Record

A carpet for sale followed. In a release for 12 May 1948 DuPont announced the Nye-Wait Company’s “Splendante”, made at Auburn, New York, its pile woven in contrasting heights to give “a bas-relief effect”, in beige, grey and pastel green.1010“Luxurious Carpet: A New Use for Nylon”, 1948-05-12 (for release May 12), Hagley, 1984259_010913_162. Record

The first carpet on the market with pile completely woven of Du Pont nylon

DuPont press release, 12 May 1948

About 1955 Nye-Wait showed almost a hundred nylon carpet samples to the press in New York, all available nationally. The rug in DuPont’s photograph, shown at the head of this chapter, was woven to order in two pile heights, and the caption called nylon carpeting “paradoxically the most luxurious yet in terms of wear life and upkeep, the most economical ever made”, introduced five years before.1111“Nylon carpeting [Nye-Wait ‘Splendante’ and ‘Cirque’ carpet]”, 1955 (year approximate), Hagley, 1972341_1333. Record Claims about wear and upkeep had to be tested.

Nancy Cooch’s nylon hooked rug, 1950

Nylon hooked rug made by Nancy du Pont Reynolds Cooch (Mrs. Edward W. Cooch Jr.)
Nancy du Pont Reynolds Cooch’s nylon hooked rug, 1950. Hagley Museum and Library, 2012.8.1SourcePermission pending

In 1950 Nancy du Pont Reynolds Cooch made a hooked rug in nylon, 116 in x 139 in (295 cm x 353 cm), now at Hagley. Hagley’s account of it, so far seen only through search results, links it to DuPont’s wear-testing of nylon for floor coverings and says that it frayed and pilled when walked on.1212Nylon hooked rug made by Nancy du Pont Reynolds Cooch (Mrs. Edward W. Cooch Jr.), 1950, Hagley, 2012.8.1. Record It is a rare bridge between handmade rugs and synthetic carpet, though not the only nylon hooked rug: Hagley also holds one in nylon and cotton from 1975–1990.1313Hooked rug in nylon and cotton, maker unknown, 1975–1990, Hagley, 2015.10.2. Record

Dirt was tested too. About 1955 DuPont photographed a test strip of carpet partly treated with Ludox colloidal silica: after vacuuming, “treated areas emerge clean, while untreated portions remain dirty and dingy”. A companion photograph said Ludox “is rapidly being adopted by the carpet industry as a soil retardant”.1414“Carpet test strip partly treated with Ludox colloidal silica”, 1955 (year approximate), Hagley, 1972341_2649 (related: 1972341_2692). Record

Nylon carpeting [tufted nylon bath mat and lid cover]
A bath mat and lid cover “tufted with DuPont nylon,” about 1955. Hagley Museum and Library, 1972341_1332SourcePermission pending

Another DuPont photograph of about the same date shows nylon already tufted. A bath mat and matching lid cover were “tufted with DuPont nylon”, and their maker described them as machine washable.1515“Nylon carpeting [tufted nylon bath mat and lid cover]”, 1955 (year approximate), Hagley, 1972341_1332. Record A mat is a small thing. DuPont’s nylon made for carpet came in 1958.

Nylon: The First 25 Years, 1963

Nylon: The First 25 Years
Nylon: The First 25 Years, DuPont’s anniversary booklet, 1963. Hagley Museum and Library, 1984259_121412_004SourcePermission pending

In 1963 DuPont marked twenty-five years of nylon with a booklet, Nylon: The First 25 Years, now at Hagley. Its chronology puts the change that mattered for carpet in 1958: “A special bulked continuous filament nylon yarn was developed for carpeting; it soon revolutionized the market for rugs and carpeting”, as Hagley’s machine-read text gives it.1616“Nylon: The First 25 Years”, 1963, Hagley, 1984259_121412_004. Record “DuPont introduces bulked continuous filament (BCF) nylon for carpet”, 1958. Record Later histories date bulked continuous filament, or BCF, to 1957 or to 1959.1717“DuPont introduces bulked continuous filament (BCF) nylon for carpet”, 1958. Record Tom McAndrews, who worked in DuPont’s textile fibres business, recalled in a 2018 oral history, as summarised in search results not yet checked against the transcript, that DuPont made carpet filament from 1952 and launched “501” carpet nylon, with a special crimp, in 1958.1818“Oral history: Tom McAndrews (DuPont Textile Fibers)”, 2018, Hagley. Record

The booklet also counted the result. “Nylon for carpets now totals over 150 million pounds a year,” it said, in the same machine-read text, and the continuous type had helped nylon take “over 26 per cent of market for broadloom carpeting”.1919“Nylon: The First 25 Years”, 1963, Hagley, 1984259_121412_004, image 25. Record The market it was taking had changed in the meantime. Tufted carpet sales, near zero in the late 1940s, passed 100 million square yards (84 million square metres) by 1958,2020Randall L. Patton, “A History of the U.S. Carpet Industry”, EH.Net Encyclopedia (Economic History Association). Record and tufted carpet reportedly sold wholesale at about half the price of woven.2121“Tufted carpet sold wholesale at about half the price of woven”, 1950s, research note. Record According to the Carpet and Rug Institute, in words so far seen only in search results, machinery developed for chenille rugs had been widened to make larger rugs and broadloom carpet (chapters 4 and 5).2222Carpet and Rug Institute, web page on the history of carpet, carpet-rug.org (quoted from search results; page not yet checked). Record

The old weavers moved as well. Mohawk and Alexander Smith, two of the great woven-carpet firms, merged as Mohasco in 1956.2323“1956: Mohawk merges with Alexander Smith to form Mohasco, as tufting takes over”, 1956, research note. Record Its 1957 annual report describes new synthetic fibres in its lines, Chromspun acetate and Acrilan acrylic, and new manufacturing techniques for its tufted and velvet fabrics, for which “patents have been received or are pending”.2424“1957 Annual Report, Mohasco Industries, Inc.”, 1957, Hagley, 72430_477, page image 7. Record Mills that could make the carpet still needed shops and households that would buy it.

A DuPont Carpet Nylon advertisement, 1960

DuPont Carpet Nylon
“DuPont Carpet Nylon,” advertisement from the New York Times Magazine, 1960. Hagley Museum and Library, dpads_1803_00475SourcePermission pending
A Houseful of Value ... All '501'
“A Houseful of Value … All ‘501’,” DuPont advertisement, 1965. Hagley Museum and Library, dpads_1803_00643SourcePermission pending

In 1960 DuPont advertised “DuPont Carpet Nylon” in the New York Times Magazine.2525“DuPont Carpet Nylon”, 1960, Hagley, dpads_1803_00475. Record By then it had commissioned studies of the people it wanted to reach. Ernest Dichter’s Institute for Motivational Research, which in 1952 had proposed a psychological study of “the Sales and Advertising Problems” of the Carpet Institute, the wool carpet industry’s trade body,2626“153A: The Carpet Institute, Inc. - Proposal for a Psychological Research Study on the Sales and Advertising Problems of the Carpet Institute, Inc., 1952”, 1952, Hagley, Accession 2407, Box 8, 153A. Record studied for DuPont why shoppers resisted or embraced nylon carpet.2727“A motivational research study of the sales and advertising problems of nylon carpets on the retail level”, Hagley, Box 42, 954C. Record In November 1957 it proposed a second study, of nylon carpet’s acceptance among distributors, buyers and retailers.2828“A Creative Problem Analysis and Proposal for a Motivational Research Study of Nylon Carpeting Acceptance among Distributors, Buyers and Retailers”, 1957-11, Hagley, MSS_2407_042_0954A1. Record In January 1959 DuPont’s own market researchers reported on “Retailers’ Attitudes Toward Carpet Fibers and the Du Pont Airwaves Program Promoting 100% Nylon Carpeting”.2929“E.I. du Pont de Nemours & Company, Textile Fibers Department records”, 1899-1988, Hagley, Accession 1771. Record

Hagley holds films of the television shows DuPont sponsored, and “DuPont Carpet Nylon” commercials ran in The DuPont Show with June Allyson on 5 October 1959, 11 January 1960 and 20 February 1961, and, by a catalogue entry so far seen only in search results, in “The Way Home”, a DuPont Show of the Month of 1960 with Ronald Reagan.3030“‘The Opening Door’ (The DuPont Show with June Allyson, Episode No. 1-3), with a DuPont Carpet Nylon commercial”, 1959-10-05, Hagley, FILM_1995300_FC305 (FC 305). Record “‘The Trench Coat’ (The DuPont Show with June Allyson. Episode No. 1-16), with a DuPont Carpet Nylon commercial”, 1960-01-11, Hagley, FC 322. Record “‘The Old Fashioned Way’ (The DuPont Show with June Allyson. Episode No. 2-21), with a DuPont Carpet Nylon commercial”, 1961-02-20, Hagley, FC 352. Record “‘The DuPont Show of the Month: The Way Home’, with a DuPont Carpet Nylon commercial”, 1960, Hagley, FC 319. Record By 1962, in The DuPont Show of the Week, the product was “DuPont 501 Carpet Nylon”.3131“‘The Beauty of Woman’ (The DuPont Show of the Week. Production Number 4036), with a DuPont 501 Carpet Nylon commercial”, 1962, Hagley, FC 366. Record

The print campaign ran on through the mid-1960s, from “A Houseful of Value … All ‘501’” (1965) to “Those Five Tough DuPont Tests” (1966).3232“A Houseful of Value ... All '501'”, 1965, Hagley, dpads_1803_00643. Record “Those Five Tough DuPont Tests”, 1966, Hagley, dpads_1803_00650. Record One advertisement of 1966 was headed:

Don’t Let Anyone Mislead You, DuPont 501 Is Not the Name of a Fiber

DuPont advertisement, 1966

Designers put nylon carpet in rooms. A Hagley photograph, so far known only from search results, shows a sitting area by William Pahlmann Associates at the 1962 Decoration & Design Show in New York, with wall-to-wall carpet of “continuous filament nylon in white and beige” by James Lees & Sons, named “Happy Day”; the maker of the fibre is not named.3333“William Pahlmann Associates sitting area, 1962 Decoration & Design Show, New York: continuous filament nylon carpet”, 1962, Hagley, 1972430_1080. Record A competitor, Allied Chemical, advertised its Caprolan carpet nylon.3434“Caprolan carpet nylon advertisement (Allied Chemical), Duke AdViews”, Duke University Libraries (AdViews), dmbb00804. Record DuPont’s next carpet fibre came with a new name.

Antron on a Marathon bridge, 1977

For the 1977 New York City Marathon, DuPont laid Antron carpet on a bridge for the runners, according to the abstract of a film of the race among the DuPont films at Hagley, so far seen only in search results.3535“‘New York City Marathon 1977’: Antron carpet laid on a bridge for runners”, 1977 (record dated 1980–81), Hagley, FC 249. Record Antron was not new by then. In tear sheets catalogued at Hagley, also known so far only from search results, DuPont advertised it in 1967 under the headline “Meet Antron: The New Carpet Fiber for Enduring Elegance”,3636“‘Meet Antron: The New Carpet Fiber for Enduring Elegance’”, 1967, Hagley, dpads_1803_00680. Record and by 1969 its advertisements called Antron “the Luxury Carpet Fiber from DuPont”.3737“‘Antron Is the Luxury Carpet Fiber from DuPont’”, 1969, Hagley, dpads_1803_00709. Record “‘Antron Nylon Is the Luxury Carpet Fiber from DuPont’”, 1969, Hagley, dpads_1803_00712. Record Sarah Archer has written about this advertising and the image of luxury it sold.3838Sarah Archer, “Luxury Underfoot”, 2023, Material Intelligence. Record

The chemistry went on behind the advertising. In 1969 a DuPont chemist, Donald Hull, invented conductive fibres to control static in nylon carpet.3939“Donald R. Hull papers”, Hagley. Record The du Pont name reached the floor by another route as well: a rug labelled “Winterthur Collection”, 100 per cent nylon and made by Shaw Rugs under licence from the Henry Francis du Pont Winterthur Museum, has appeared at auction.4040“Winterthur Collection” area rug, 100% nylon, made by Shaw Rugs under licence, Private (auction listing). Record

The Making of Carpet Fiber, Seaford, 1991

By 1991 DuPont was teaching the carpet trade how its fibre was made. The Making of Carpet Fiber, a ten-minute film released that year by the Learning Center of DuPont Flooring Systems and now at Hagley, opens with an argument: carpet that has to take constant traffic needs a fibre made for it, type 6,6 nylon, which the film says DuPont made in 1938 as the world’s first synthetic fibre. Its raw materials, the narrator explains, begin as fossil fuel, air and water, made into adipic acid, a powder, and hexamethylene diamine, a liquid, and joined under precisely controlled heat and pressure into a superpolymer. The opening minutes are known from the author’s notes on watching the film, since Hagley’s captions begin later.4141“The Making of Carpet Fiber”, 1991, Hagley, VID_1995300_B23_ID02. Record

The film then goes to the fibre plant at Seaford, one of five DuPont fibre plants worldwide by its count. Adipic acid arrives by hopper car and hexamethylene diamine by tank car, to be pumped into an autoclave “like a giant pressure cooker”, where they are linked into what the narrator calls “linear superpolymers”.4242“The Making of Carpet Fiber”, 1991, Hagley, VID_1995300_B23_ID02. Record

The film’s point is that much of a carpet was settled before any yarn reached a mill. In the molten polymer, it says, DuPont set the fibre’s lustre, its opacity for hiding soil, and its dye affinity, so that fibres of different affinities, combined in an undyed carpet, take several colours in a single dye bath; pigment added at this stage makes solution-dyed nylon, its colour “locked into the fiber itself”. The polymer is then pumped through a spinneret, “similar in principle to a shower head”, whose holes set each filament’s size and cross-section, and the narrator says DuPont’s modified square and delta-shaped filaments, “available only from DuPont”, are “engineered to best diffuse light to hide soil”.4343“The Making of Carpet Fiber”, 1991, Hagley, VID_1995300_B23_ID02. Record

The film also shows what the change of 1958 meant on the factory floor. Staple fibre is crimped into a two-dimensional zigzag, cut into short lengths and baled for carpet mills or yarn makers to spin. Bulked continuous filament is drawn, crimped into a “curvilinear, three-dimensional texture” and wound onto packages in one continuous process, each package holding about 30 miles (48 km) of yarn; the film says it serves every kind of carpet construction, and spun staple mainly cut pile. Static had been dealt with too: anti-static filaments went into “every DuPont nylon carpet fiber bundle”. The film is DuPont’s own account of its product, made to sell it to the commercial carpet trade.4444“The Making of Carpet Fiber”, 1991, Hagley, VID_1995300_B23_ID02. Record

This chapter argues that DuPont’s nylon reached the floor before it had a carpet fibre or a tufted market. Its earliest carpets in these records were woven, some of them shown off in the company’s own hotel. In 1958 DuPont made a bulked continuous filament nylon for carpet, as tufted carpet sales passed 100 million square yards (84 million square metres), and its market research and advertising, from the late 1950s, addressed the retailers and households who would buy nylon carpet. By 1991 its training films taught the commercial trade that a carpet’s colour, its soil-hiding and its resistance to static were settled in the fibre itself.4545“DuPont introduces bulked continuous filament (BCF) nylon for carpet”, 1958. Record Randall L. Patton, “A History of the U.S. Carpet Industry”, EH.Net Encyclopedia (Economic History Association). Record “The Making of Carpet Fiber”, 1991, Hagley, VID_1995300_B23_ID02. Record

Notes

  1. 1E.I. du Pont de Nemours & Company. Textile Fibers Department (originator); Public Relations Department (associated). “Hotel du Pont Installs Nylon Fabrics for Economy of Wear and Care,” 1948-07-13. 1984259_010913_168, DuPont Company Textile Fibers Product Information photographs (Accession 1984.259), Series II. Textile reference files; Subseries E. Nylon. Folder titled: Nylon - 1948, Hagley Museum and Library. digital.hagley.org/1984259_010913_168. Record
  2. 2Wallace H. Carothers, “Linear condensation polymers” (US2071250A), granted 16 Feb 1937; assigned to E. I. du Pont de Nemours & Company. patents.google.com/patent/US2071250A/en. Record Wallace H. Carothers, “Synthetic fiber” (US2130948A), granted 20 Sep 1938; assigned to E. I. du Pont de Nemours & Company. patents.google.com/patent/US2130948A/en. Record
  3. 3“Hagley Vault: ‘February 16, 1937: E. I. du Pont de Nemours & Co. was granted U.S. patent…’.” Hagley Museum and Library, 1937. hagley.org/research/news/hagley-vault/date-february-16-1937-ei-du-pont-de-nemours-co-was-granted-us-patent. Record David A. Hounshell and John Kenly Smith. Science and Corporate Strategy: Du Pont R&D, 1902–1980. Cambridge University Press, 1988. Record
  4. 4Wallace H. Carothers, “Linear condensation polymers” (US2071250A), granted 16 Feb 1937; assigned to E. I. du Pont de Nemours & Company. patents.google.com/patent/US2071250A/en. Record
  5. 5“Nylon 6 was developed separately by Paul Schlack at IG Farben, Germany (1938), sold as Perlon.” Research note. Record
  6. 6“Careful wording: ‘DuPont invented nylon’.” Research note. Record
  7. 7DuPont Seaford Plant. “Seaford Plant nylon collection (photographs, pamphlets, film),” 1939–. Hagley Museum and Library. findingaids.hagley.org/1990_266. Record
  8. 8E.I. du Pont de Nemours & Company (product information photograph); carpet by James Lees and Sons Company ("Sculptex"). “The Nylon Suite at the Hotel DuPont,” 1945 (year approximate). 1972341_1401 (related views 1972341_1366, _1369, _1371, _1373), DuPont Company Product Information photographs (Accession 1972.341), Series V. Man made fibers, Subseries C. Nylon, Hagley Museum and Library. digital.hagley.org/1972341_1401. Record
  9. 9E.I. du Pont de Nemours & Company (product information photograph); carpet by James Lees and Sons Company ("Sculptex"). “The Nylon Suite at the Hotel DuPont,” 1945 (year approximate). 1972341_1401 (related views 1972341_1366, _1369, _1371, _1373), DuPont Company Product Information photographs (Accession 1972.341), Series V. Man made fibers, Subseries C. Nylon, Hagley Museum and Library. digital.hagley.org/1972341_1401. Record E.I. du Pont de Nemours & Company. Textile Fibers Department (originator); Public Relations Department (associated). “Hotel du Pont Installs Nylon Fabrics for Economy of Wear and Care,” 1948-07-13. 1984259_010913_168, DuPont Company Textile Fibers Product Information photographs (Accession 1984.259), Series II. Textile reference files; Subseries E. Nylon. Folder titled: Nylon - 1948, Hagley Museum and Library. digital.hagley.org/1984259_010913_168. Record
  10. 10E.I. du Pont de Nemours & Company, Public Relations Department (news release). “Luxurious Carpet: A New Use for Nylon,” 1948-05-12 (for release May 12). 1984259_010913_162, DuPont Company Textile Fibers Product Information photographs (Accession 1984.259), Series II. Textile reference files; Subseries E. Nylon. Folder titled: Nylon - 1948, Hagley Museum and Library. digital.hagley.org/1984259_010913_162. Record
  11. 11E.I. du Pont de Nemours & Company (product information photograph); carpet by the Nye-Wait Company. “Nylon carpeting [Nye-Wait ‘Splendante’ and ‘Cirque’ carpet],” 1955 (year approximate). 1972341_1333, DuPont Company Product Information photographs (Accession 1972.341), Series V. Man made fibers, Subseries C. Nylon, Hagley Museum and Library. digital.hagley.org/1972341_1333. Record
  12. 12Unknown maker. Nylon hooked rug made by Nancy du Pont Reynolds Cooch (Mrs. Edward W. Cooch Jr.), 1950. Hagley Museum and Library, 2012.8.1. hagley.org/librarynews/museum-collections-du-pont-story-hooked-rug. Record
  13. 13Unknown maker. Hooked rug in nylon and cotton, maker unknown, 1975–1990. Hagley Museum and Library, 2015.10.2. museumcollection.hagley.org/objects/46294/hooked-rug. Record
  14. 14“Carpet test strip partly treated with Ludox colloidal silica,” 1955 (year approximate). 1972341_2649 (related: 1972341_2692), DuPont Company Product Information photographs (Accession 1972.341), Series IX. Fabrics and finishes, Hagley Museum and Library. digital.hagley.org/1972341_2649. Record
  15. 15E.I. du Pont de Nemours & Company (product information photograph); mats by Neddletuft [sic]. “Nylon carpeting [tufted nylon bath mat and lid cover],” 1955 (year approximate). 1972341_1332, DuPont Company Product Information photographs (Accession 1972.341), Series V. Man made fibers, Subseries C. Nylon, Hagley Museum and Library. digital.hagley.org/1972341_1332. Record
  16. 16E.I. du Pont de Nemours & Company. Textile Fibers Department (originator); Public Relations Department (associated). “Nylon: The First 25 Years,” 1963. 1984259_121412_004, DuPont Company Textile Fibers Product Information photographs (Accession 1984.259), Series I. Fashion master files; Subseries F. Hosiery, Box 12, Folder 20, Hagley Museum and Library. digital.hagley.org/1984259_121412_004. Record “DuPont introduces bulked continuous filament (BCF) nylon for carpet,” 1958. georgiaencyclopedia.org/articles/business-economy/carpet-industry. Record
  17. 17“DuPont introduces bulked continuous filament (BCF) nylon for carpet,” 1958. georgiaencyclopedia.org/articles/business-economy/carpet-industry. Record
  18. 18“Oral history: Tom McAndrews (DuPont Textile Fibers),” 2018. Textile Fibers Department oral histories, Hagley Museum and Library. digital.hagley.org/system/files/2025-06/islandora_2599141_obj.pdf. Record
  19. 19E.I. du Pont de Nemours & Company. Textile Fibers Department (originator); Public Relations Department (associated). “Nylon: The First 25 Years,” 1963. 1984259_121412_004, DuPont Company Textile Fibers Product Information photographs (Accession 1984.259), Series I. Fashion master files; Subseries F. Hosiery, Box 12, Folder 20, Hagley Museum and Library, image 25. digital.hagley.org/1984259_121412_004. Record
  20. 20Randall L. Patton. “A History of the U.S. Carpet Industry.” EH.Net Encyclopedia (Economic History Association), n.d. eh.net/encyclopedia/a-history-of-the-u-s-carpet-industry. Record
  21. 21“Tufted carpet sold wholesale at about half the price of woven.” Research note. georgiaencyclopedia.org/articles/business-economy/carpet-industry. Record
  22. 22Carpet and Rug Institute, web page on the history of carpet, carpet-rug.org (quoted from search results; page not yet checked). carpet-rug.org/about-us/history-of-carpet. Record
  23. 23“1956: Mohawk merges with Alexander Smith to form Mohasco, as tufting takes over.” Research note. en.wikipedia.org/wiki/Mohawk_Industries. Record
  24. 24Mohasco Industries. “1957 Annual Report, Mohasco Industries, Inc.,” 1957. 72430_477, Joseph Bancroft and Sons Company, Miss America collection (Accession 1972.430), Box 3, Folder 13, Hagley Museum and Library, page image 7. digital.hagley.org/72430_477. Record
  25. 25E.I. du Pont de Nemours & Company. Advertising Department. “DuPont Carpet Nylon,” 1960. dpads_1803_00475, E.I. du Pont de Nemours & Company Advertising Department records (Accession 1803), Series I. Advertising Department, general files, Box 43, Folder 37, Hagley Museum and Library. digital.hagley.org/dpads_1803_00475. Record
  26. 26Ernest Dichter (Institute for Motivational Research). “153A: The Carpet Institute, Inc. - Proposal for a Psychological Research Study on the Sales and Advertising Problems of the Carpet Institute, Inc., 1952,” 1952. Accession 2407, Box 8, 153A, Ernest Dichter papers (Accession 2407), Series I. Research Proposals and Reports, Box 8, Hagley Museum and Library. findingaids.hagley.org/repositories/3/archival_objects/230059. Record
  27. 27Ernest Dichter (Institute for Motivational Research) for DuPont. “A motivational research study of the sales and advertising problems of nylon carpets on the retail level,” n.d. Box 42, 954C, Ernest Dichter papers, Hagley Museum and Library. marketresearch.amdigital.co.uk/Documents/Details/A-motivational-research-study-of-the-sales-and-advertising-problems-of-nylon-carpets-on-the-retail/Hagley_Dichter_BX042_954C. Record
  28. 28Ernest Dichter (1907-1991); Institute for Motivational Research. “A Creative Problem Analysis and Proposal for a Motivational Research Study of Nylon Carpeting Acceptance among Distributors, Buyers and Retailers,” 1957-11. MSS_2407_042_0954A1, Ernest Dichter papers (Accession 2407), Series I. Research Proposals and Reports, Box 42, Item 954.1A, Hagley Museum and Library. digital.hagley.org/MSS_2407_042_0954A1. Record
  29. 29E.I. du Pont de Nemours & Company. Textile Fibers Department. “E.I. du Pont de Nemours & Company, Textile Fibers Department records,” 1899-1988. Accession 1771, Hagley Library, Manuscripts and Archives, Hagley Museum and Library. findingaids.hagley.org/repositories/3/resources/1278. Record
  30. 30“‘The Opening Door’ (The DuPont Show with June Allyson, Episode No. 1-3), with a DuPont Carpet Nylon commercial,” 1959-10-05. FILM_1995300_FC305 (FC 305), DuPont Company films and commercials (Accession 1995.300), Series VIII. The DuPont Show with June Allyson, FC 305, Hagley Museum and Library. digital.hagley.org/FILM_1995300_FC305. Record Sponsor: E.I. du Pont de Nemours & Company. “‘The Trench Coat’ (The DuPont Show with June Allyson. Episode No. 1-16), with a DuPont Carpet Nylon commercial,” 1960-01-11. FC 322, DuPont Company films and commercials (Accession 1995.300), Series VIII. The DuPont Show with June Allyson, FC 322, Hagley Museum and Library. digital.hagley.org/FILM_1995300_FC322. Record Sponsor: E.I. du Pont de Nemours & Company. “‘The Old Fashioned Way’ (The DuPont Show with June Allyson. Episode No. 2-21), with a DuPont Carpet Nylon commercial,” 1961-02-20. FC 352, DuPont Company films and commercials (Accession 1995.300), Series VIII. The DuPont Show with June Allyson, FC 352, Hagley Museum and Library. digital.hagley.org/FILM_1995300_FC352. Record “‘The DuPont Show of the Month: The Way Home’, with a DuPont Carpet Nylon commercial,” 1960. FC 319, DuPont Company films and commercials (Acc. 1995.300), Hagley Museum and Library. digital.hagley.org/FILM_1995300_FC319. Record
  31. 31Sponsor: E.I. du Pont de Nemours & Company. “‘The Beauty of Woman’ (The DuPont Show of the Week. Production Number 4036), with a DuPont 501 Carpet Nylon commercial,” 1962. FC 366, DuPont Company films and commercials (Accession 1995.300), Series IX. The DuPont Show of the Week, FC 366, Hagley Museum and Library. digital.hagley.org/FILM_1995300_FC366. Record
  32. 32E.I. du Pont de Nemours & Company. Advertising Department. “A Houseful of Value .. All '501',” 1965. dpads_1803_00643, E.I. du Pont de Nemours & Company Advertising Department records (Accession 1803), Series I. Advertising Department, general files, Box 43, Folder 40, Hagley Museum and Library. digital.hagley.org/dpads_1803_00643. Record E.I. du Pont de Nemours & Company. Advertising Department. “Those Five Tough DuPont Tests,” 1966. dpads_1803_00650, E.I. du Pont de Nemours & Company Advertising Department records (Accession 1803), Series I. Advertising Department, general files, Box 43, Folder 41, Hagley Museum and Library. digital.hagley.org/dpads_1803_00650. Record
  33. 33“William Pahlmann Associates sitting area, 1962 Decoration & Design Show, New York: continuous filament nylon carpet,” 1962. 1972430_1080, Acc. 1972.430 (photographs), Hagley Museum and Library. digital.hagley.org/1972430_1080. Record
  34. 34“Caprolan carpet nylon advertisement (Allied Chemical), Duke AdViews,” n.d. dmbb00804, Duke University Libraries (AdViews). repository.duke.edu/dc/adviews/dmbb00804. Record
  35. 35“‘New York City Marathon 1977’: Antron carpet laid on a bridge for runners,” 1977 (record dated 1980–81). FC 249, DuPont Company films and commercials (Acc. 1995.300), Hagley Museum and Library. digital.hagley.org/FILM_1995300_FC249_02. Record
  36. 36“‘Meet Antron: The New Carpet Fiber for Enduring Elegance’,” 1967. dpads_1803_00680, DuPont Advertising Dept. records (Acc. 1803), Series I, Box 43, Folder 42, Advertising tearsheets 1967, Hagley Museum and Library. digital.hagley.org/dpads_1803_00680. Record
  37. 37“‘Antron Is the Luxury Carpet Fiber from DuPont’,” 1969. dpads_1803_00709, DuPont Advertising Dept. records (Acc. 1803), Box 43, Advertising tearsheets 1969, Hagley Museum and Library. digital.hagley.org/dpads_1803_00709. Record “‘Antron Nylon Is the Luxury Carpet Fiber from DuPont’,” 1969. dpads_1803_00712, DuPont Advertising Dept. records (Acc. 1803), Series I, Box 43, Folder 44, Advertising tearsheets 1969, Hagley Museum and Library. digital.hagley.org/dpads_1803_00712. Record
  38. 38Sarah Archer. “Luxury Underfoot.” Material Intelligence, 2023. sarah-archer.com/writing/luxury-underfoot. Record
  39. 39Donald R. Hull. “Donald R. Hull papers,” n.d. Hagley Museum and Library. findingaids.hagley.org/repositories/3/resources/965. Record
  40. 40Unknown maker. “Winterthur Collection” area rug, 100% nylon, made by Shaw Rugs under licence, n.d. Private (auction listing). ebth.com/items/5023244-winterthur-collection-area-rug. Record
  41. 41E.I. du Pont de Nemours & Company; released by The Learning Center, DuPont Flooring Systems. “The Making of Carpet Fiber,” 1991. VID_1995300_B23_ID02, DuPont Company films and commercials (Accession 1995.300), Box 23, Hagley Museum and Library. digital.hagley.org/VID_1995300_B23_ID02. Record
  42. 42E.I. du Pont de Nemours & Company; released by The Learning Center, DuPont Flooring Systems. “The Making of Carpet Fiber,” 1991. VID_1995300_B23_ID02, DuPont Company films and commercials (Accession 1995.300), Box 23, Hagley Museum and Library. digital.hagley.org/VID_1995300_B23_ID02. Record
  43. 43E.I. du Pont de Nemours & Company; released by The Learning Center, DuPont Flooring Systems. “The Making of Carpet Fiber,” 1991. VID_1995300_B23_ID02, DuPont Company films and commercials (Accession 1995.300), Box 23, Hagley Museum and Library. digital.hagley.org/VID_1995300_B23_ID02. Record
  44. 44E.I. du Pont de Nemours & Company; released by The Learning Center, DuPont Flooring Systems. “The Making of Carpet Fiber,” 1991. VID_1995300_B23_ID02, DuPont Company films and commercials (Accession 1995.300), Box 23, Hagley Museum and Library. digital.hagley.org/VID_1995300_B23_ID02. Record
  45. 45“DuPont introduces bulked continuous filament (BCF) nylon for carpet,” 1958. georgiaencyclopedia.org/articles/business-economy/carpet-industry. Record Randall L. Patton. “A History of the U.S. Carpet Industry.” EH.Net Encyclopedia (Economic History Association), n.d. eh.net/encyclopedia/a-history-of-the-u-s-carpet-industry. Record E.I. du Pont de Nemours & Company; released by The Learning Center, DuPont Flooring Systems. “The Making of Carpet Fiber,” 1991. VID_1995300_B23_ID02, DuPont Company films and commercials (Accession 1995.300), Box 23, Hagley Museum and Library. digital.hagley.org/VID_1995300_B23_ID02. Record
